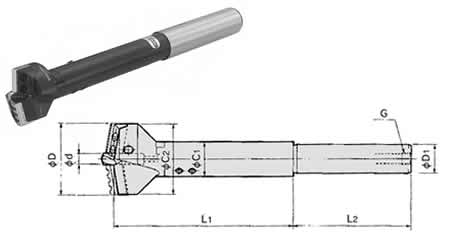

Super Drill Straight Shank Set ST Drill Code Max-200
Super Drill Straight Shank Set
ST Drill Code Max-200
Standard Head Type
A to D set consists of
Standard Head - 1 pc
MT Drill Arbor - 1 pc
Center Drill - 1 pc
Drill Blade - 2 Sets
Oil Plug - 1 pc
Wrenches - 1 set
Steel case - 1 pc
Note: dimensions are in mm unless marked by "
Click here to chat with sales
Super Drill Standard Head
Part Number
Code
Hole Dia
Set Blade1
Set Blade2
ød
L1
L2
øC1
øC2
øD1
G
Your Cost
Order Quantity
SHO-54500
ST32-A1-55-200S
50~55
BK50F
BK53F
12
200
130
29
48
32
PT1/4
$1186.00
SHO-54500S
ST125-A1-55-200S
50~55
BK50F
BK53F
12
200
130
29
48
1-1/4"
PT1/4
$1186.00
SHO-54501
ST32-A2-65-200S
55~65
BK55F
BK60F
12
200
130
29
53
32
PT1/4
$1200.00
SHO-54501S
ST125-A2-65-200S
55~65
BK55F
BK60F
12
200
130
29
53
1-1/4"
PT1/4
$1200.00
SHO-54502
ST32-B-80-200S
65~80
BK65F
BK73F
12
200
130
35
63
32
PT1/4
$1355.00
SHO-54502S
ST125-B-80-200S
65~80
BK65F
BK73F
12
200
130
35
63
1-1/4"
PT1/4
$1355.00
SHO-54503
ST32-C-100-200S
80~100
BK80F
BK90F
12
200
130
38
78
32
PT1/4
$1542.00
SHO-54503S
ST125-C-100-200S
80~100
BK80F
BK90F
12
200
130
38
78
1-1/4"
PT1/4
$1542.00
SHO-54504
ST32-D-120-200S
100~120
BK100F
BK110F
12
200
130
45
98
32
PT1/4
$1849.00
SHO-54504S
ST125-D-120-200S
100~120
BK100F
BK110F
12
200
130
45
98
1-1/4"
PT1/4
$1849.00
SHO-54510
ST42-A1-55-200S
50~55
BK50F
BK53F
12
200
130
29
48
42
PT1/4
$1354.00
SHO-54510S
ST175-A1-55-200S
50~55
BK50F
BK53F
12
200
130
29
48
42
PT1/4
$1354.00
SHO-54511
ST42-A2-65-200S
55~65
BK55F
BK60F
12
200
130
29
53
42
PT1/4
$1368.00
SHO-54511S
ST175-A2-65-200S
55~65
BK55F
BK60F
12
200
130
29
53
42
PT1/4
$1368.00
SHO-54512
ST42-B-80-200S
65~80
BK65F
BK73F
12
200
130
35
63
42
PT1/4
$1565.00
SHO-54512S
ST175-B-80-200S
65~80
BK65F
BK73F
12
200
130
35
63
42
PT1/4
$1565.00
SHO-54513
ST42-C-100-200S
80~100
BK80F
BK90F
12
200
130
38
78
42
PT1/4
$1752.00
SHO-54513S
ST175-C-100-200S
80~100
BK80F
BK90F
12
200
130
38
78
42
PT1/4
$1752.00
SHO-54514
ST42-D-120-200S
100~120
BK100F
BK110F
12
200
130
45
98
42
PT1/4
$2046.00
SHO-54514S
ST175-D-120-200S
100~120
BK100F
BK110F
12
200
130
45
98
42
PT1/4
$2046.00
