Super Drill Morse Taper Shank Set MT drill Code Max

Super Drill Morse Taper Shank Set
MT drill Code Max
Flat Head Type
A to D set consists of
  • Standard Head - 1 pc
  • MT Drill Arbor - 1 pc
  • Center Drill - 1 pc
  • Drill Blade - 2 Sets
  • Oil Plug - 1 pc
  • Wrenches - 1 set
  • Steel case - 1 pc
    Note: dimensions are in mm
    Click here to chat with sales

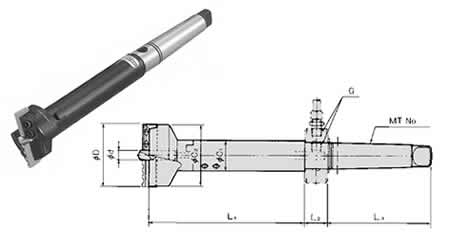

Super Drill Morse Taper Shank Set Flat Head Type
Super Drill Flat Head
Part Number Code Hole Dia Set Blade1 Set Blade2 ød L1 L2 L3 øC1 øC2 MT No. G Your Cost Order Quantity
SHO-54540
MT4-A1-55-200-FT-S
50~55
BK50F
BK53F
12
200
30
130
29
48
MT4
PT1/4
$1443.00
SHO-54541
MT4-A2-65-200-FT-S
55~65
BK55F
BK60F
12
200
30
130
29
53
MT4
PT1/4
$1457.00
SHO-54542
MT4-B-80-200-FT-S
65~80
BK65F
BK73F
12
200
30
130
35
63
MT4
PT1/4
$1662.00
SHO-54543
MT4-C-100-200-FT-S
80~100
BK80F
BK90F
12
200
30
130
38
78
MT4
PT1/4
$1847.00
SHO-54544
MT4-D-120-200-FT-S
100~120
BK100F
BK110F
12
200
30
130
45
98
MT4
PT1/4
$2143.00
