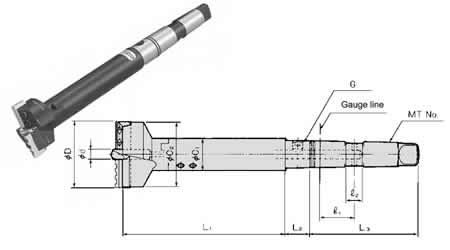

Super Drill Morse Taper Shank Set Flat Head Type
Super Drill Morse Taper Shank Set
Flat Head Type
For Oil-Hole Adapter
A to D set consists of
Standard Head - 1 pc
MT Drill Arbor - 1 pc
Center Drill - 1 pc
Drill Blade - 2 Sets
Oil Plug - 1 pc
Wrenches - 1 set
Steel case - 1 pc
Note: dimensions are in mm
All drills on this page have a Morse Taper 4 Shank
Click here to chat with sales
Super Drill Flat Head
Part Number
Code
Hole Dia
Set Blade1
Set Blade2
ød
L1
L2
L3
l1
l2
C1
C2
G
Your Cost
Order Quantity
SHO-54560
MT4-A1-55-200-F-OH-S
50~55
BK50F
BK53F
12
200
30
130
41
20
29
48
PT1/4
$1443.00
SHO-54561
MT4-A2-65-200-F-OH-S
55~65
BK55F
BK60F
12
200
30
130
41
20
29
53
PT1/4
$1457.00
SHO-54562
MT4-B-80-200-F-OH-S
65~80
BK65F
BK73F
12
200
30
130
41
20
35
63
PT1/4
$1662.00
SHO-54563
MT4-C-100-200-F-OH-S
80~100
BK80F
BK90F
12
200
30
130
41
20
38
78
PT1/4
$1847.00
SHO-54564
MT4-D-120-200-F-OH-S
100~120
BK100F
BK110F
12
200
30
130
41
20
45
98
PT1/4
$2143.00
